Regulators of all brands

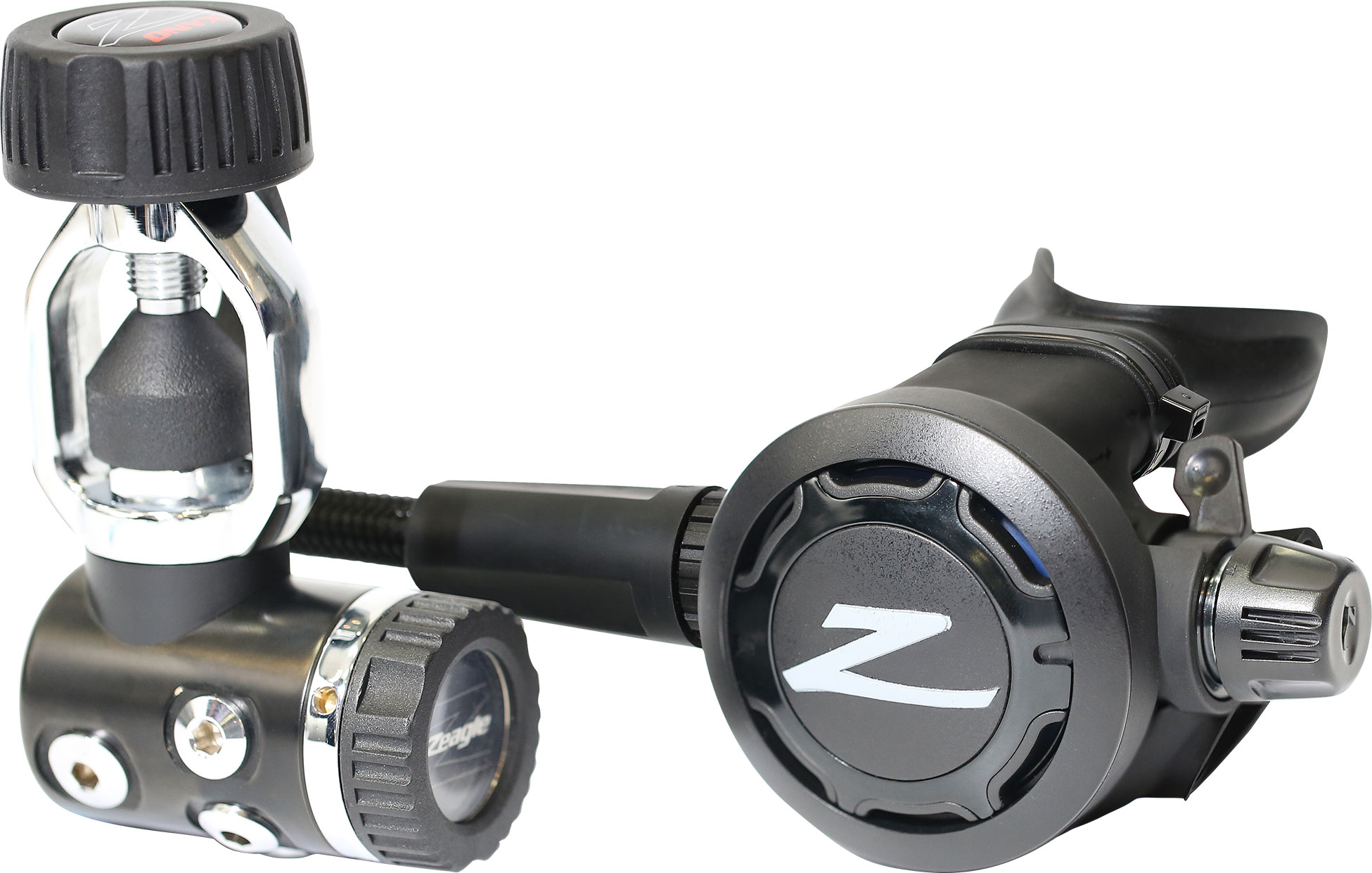

Onyx II

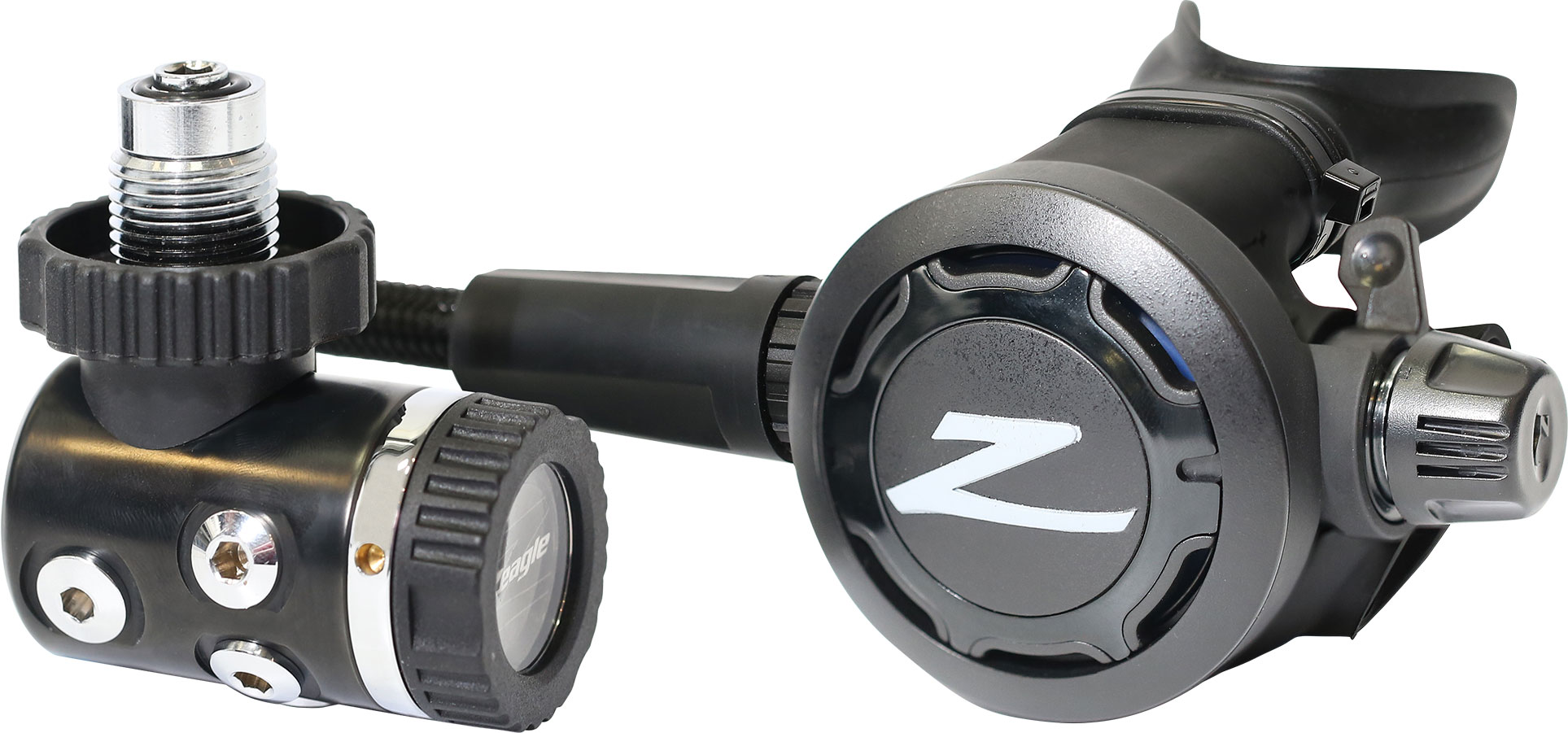

Onyx_DIN_0

Onyx II

1st stage:

The Onyx CW is available in yoke and DIN (with or without adaptor) styles.

  • Environmentally Sealed and Cold Water kit installed
  • Balanced Diaphragm
  • 5 LP Ports
  • 2 HP Ports
  • Ideal for cold water
  • Lighter weight



2nd stage:

  • Downstream valve
  • Balanced Diaphragm
  • Dive/Pre Dive Venturi Control
  • Diver Adjustable Breathing Sensitivity
  • New Compact Profile
  • Braided Hose Length: 30 in. (.76 m)

Onyx_YOKE_0

Share

Octo-Z

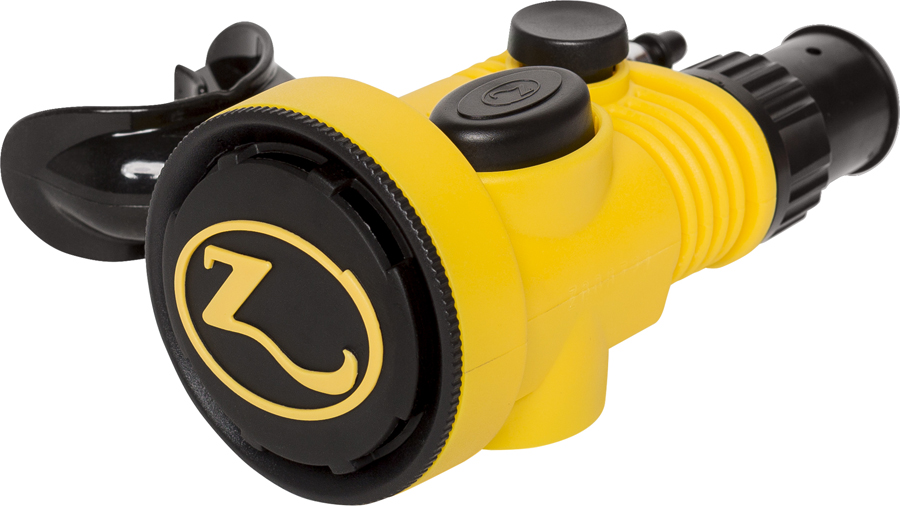

320-7200YL Octo-Z yellow 01

  • High flow QD connections for air supply
  • Corrugated hose disconnect (So Octo-Z can easily be stored with regulator.)
  • Corrugated hose rinse connection. (Allows a garden hose to be connected to the BC for easy effective rinsing.)
  • Light but rugged design
  • Balanced inflation valve, for easy use and precise BC fill-rate control. (The BC can be orally inflated through the Octo-Zs mouthpiece.)
  • Both QD and corrugated hose fittings rotate (even under pressure) for easy, comfortable placement of the Octo-Zs body.
  • Ergonomic placement and contrasting colors make the Inflate and Deflate buttons easy to find, distinguish and operate



Share

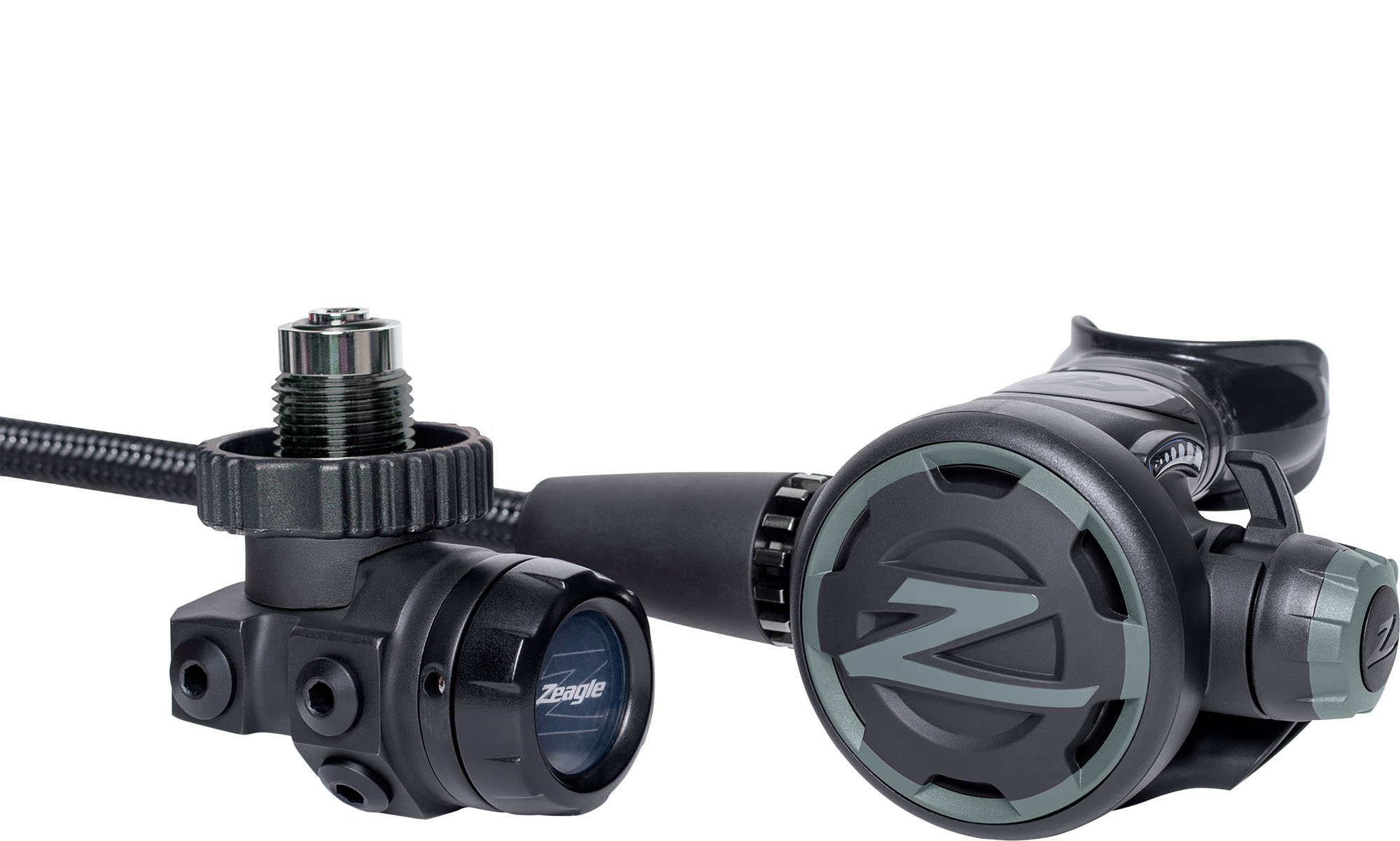

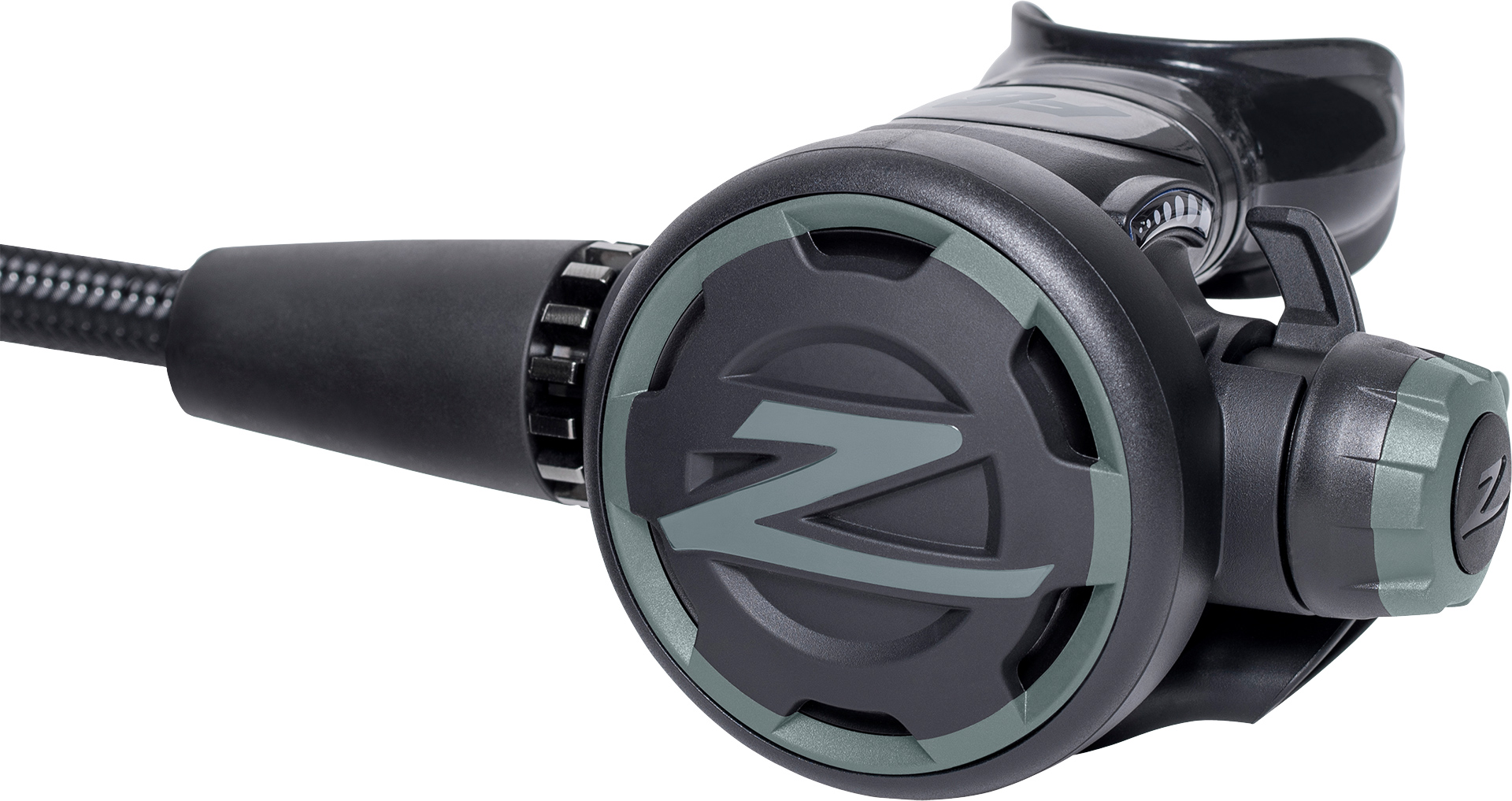

F8

Regulator_F8_close

1st stage:

  • Balanced diaphragmdesign and the environmentally sealed ambient chamber ensure top performance in any condition.
  • Redesigned environmental seal cap and yoke knob enhance ergonomics & design aesthetics.
  • Percision machined neoflon seatharder more reliable material, keeping you diving longer



2nd stage:

  • New inhalation diaphragmprovides superior tear strength and improved response time to breathing (super soft silicone molded over a low friction disk).
  • Improved exhaust valveensures dryness and a lower exhalation effort.
  • Seat-saving orifice, compliments of Atomic Aquatics, retracts when not in use – extending the life of the breathing tube seat. (#5,803,073)
  • Seat comprised of soft silicone molded over a metal insert to deliver the firmness required for an airtight seal while maintaining the necessary elasticity to prevent leaking.
  • Redesigned front cover and inhalation effort control knob use co-molded components that provide the necessary grip, soft touch and ease of use. Available in several color kits
  • Zirconium-plated inlet tubeand heat sink for superior corrosion resistance.
  • Redesigned heat sinkdramatically increases surface area, aiding in the heat exchange necessary to avoid freeze-up.
  • Co-moldedsilicone mouthpiece for better fit and less jaw fatigue

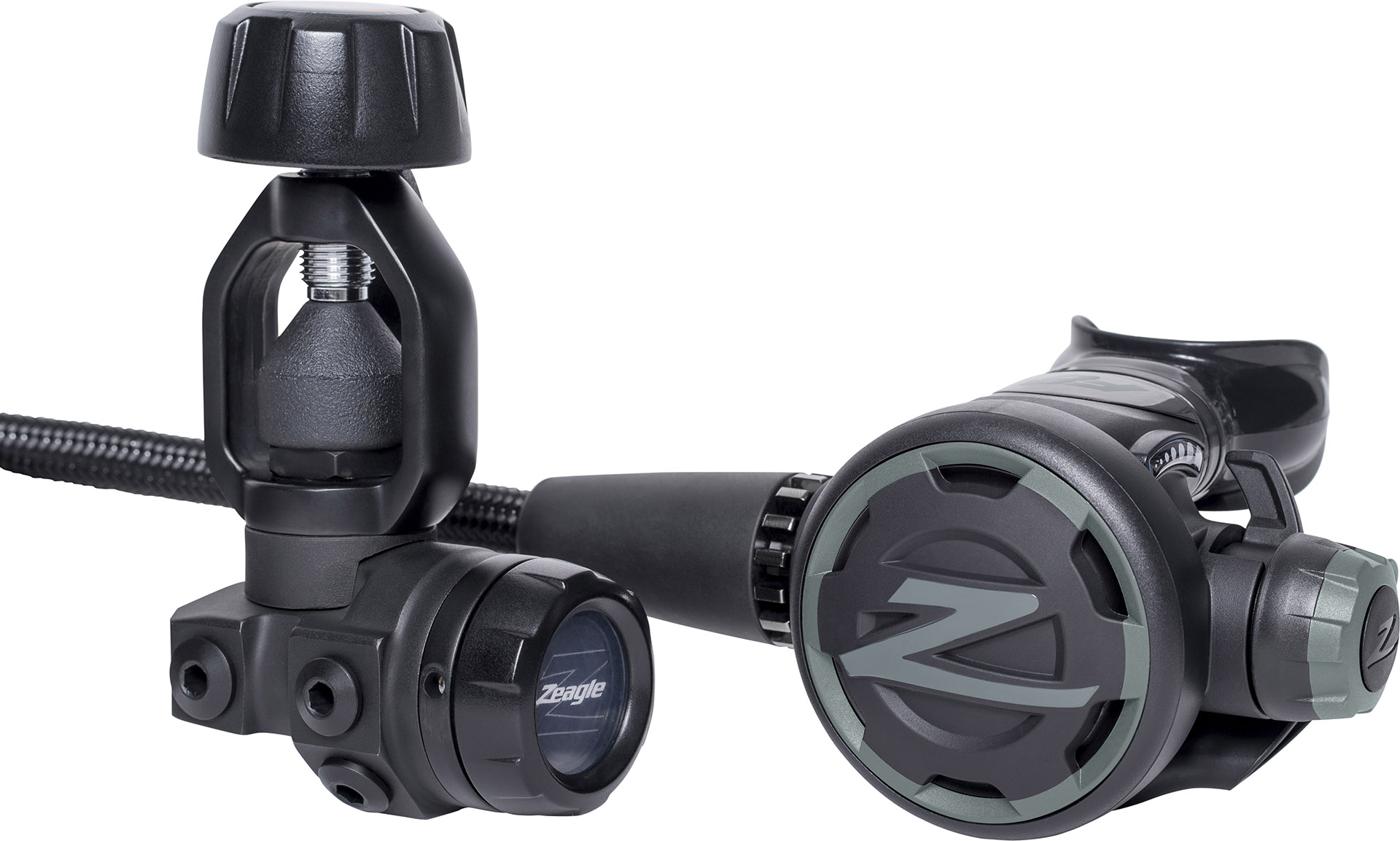

Regulator_F8_GREY-Large RegulatorF8GREYCutoutDIN1 copy

Share

F8 Octopus

Regulator_F8_close_octo

  • New inhalation diaphragmprovides superior tear strength and improved response time to breathing (super soft silicone molded over a low friction disk).
  • Improved exhaust valveensures dryness and a lower exhalation effort.
  • Seat-saving orifice, compliments of Atomic Aquatics, retracts when not in use – extending the life of the breathing tube seat. (#5,803,073)
  • Seat comprised of soft silicone molded over a metal insert to deliver the firmness required for an airtight seal while maintaining the necessary elasticity to prevent leaking.
  • Redesigned front cover and inhalation effort control knob use co-molded components that provide the necessary grip, soft touch and ease of use. Available in several color kits
  • Zirconium-plated inlet tubeand heat sink for superior corrosion resistance.
  • Redesigned heat sinkdramatically increases surface area, aiding in the heat exchange necessary to avoid freeze-up.
  • Co-moldedsilicone mouthpiece for better fit and less jaw fatigu- See more at: http://www.zeagle.com/products-repository/regulators/regulator-accessories-alternate-air/f8-octopus#sthash.Z7nABw3v.dpuf
Share

Envoy II

2X50_DELUX_Din_0

1st stage:

The Envoy is available in yoke and DIN (with or without adaptor) styles.

  • Environmentally Sealed
  • Balanced Diaphragm
  • 5 LP Ports
  • 2 HP Ports
  • Lighter weight



2nd stage:

  • Downstream valve
  • Balanced Diaphragm
  • Dive/Pre Dive Venturi Control
  • Hose Length: 30 in. (.76 m)

350-3110 Envoy 03

Share

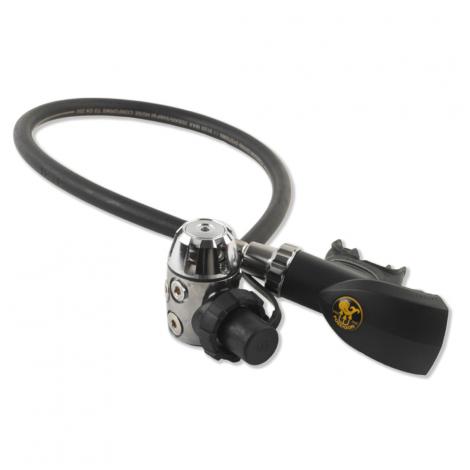

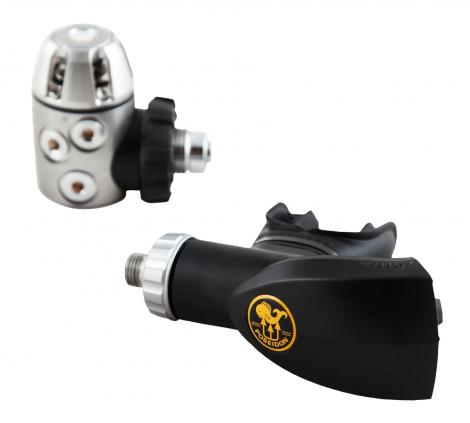

Xstream

001-47_xxl

The regulator of choice for demanding divers

The regulator of choice for demanding divers using air, nitrox, trimix or oxygen. Outstanding performance and certified to 200 meters / 656 feet.

Colours: Black, Green and Yellow

Materials: Durable PCS housing with metal mechanism and rubber parts.

TECHNICAL FEATURES:
> Trimix, nitrox, oxygen and air
> 95% Helium mix could be used
> 100% O2 Certified
> 200 m / 656 ft  approval Norwegian Norsok
U101 standard
> Approved to cold water standard, EN250
> Approved for use under ice down
to -1,6 °C / 29.12 °F without CWD kit
> Unique internal Thermo Dynamic Anti-freeze system (TDA)
> 5 LP and 2 HP-ports
> 2nd stage could be used either from
left or right
> Upstream 2nd stage valve
> Low WOB – Servo assisted

Models:
Xstream Deep MK3, Black (Air, Nitrox 40% and Trimix)
Xstream Duration M26 (EU), Green (Nitrox and 100% Oxygen)

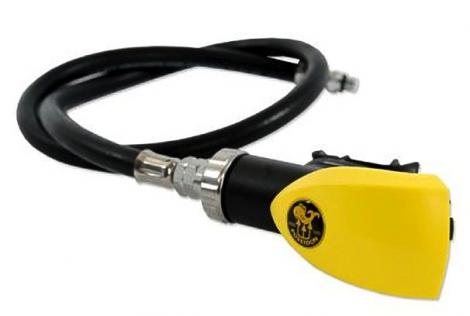

Xstream Octupus, Yellow (Air)

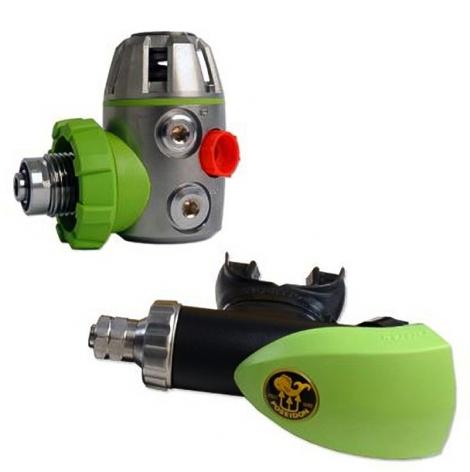

Xstream Duration G5/8″, Green (Nitrox and 100% Oxygen)

Single Kit – Xstream Deep, Yellow
Single Kit – Xstream Duration M26
Single Kit – Xstream Duration G5/8″
Single Kit – Xstream Mk3
Single Kit – Xstream Deep, Black

Double Kit – Xstream Deep, Yellow
Double Kit – Xstream Duration M26
Double Kit – Xstream Duration G5/8″
Double Kit – Xstream Deep, Black

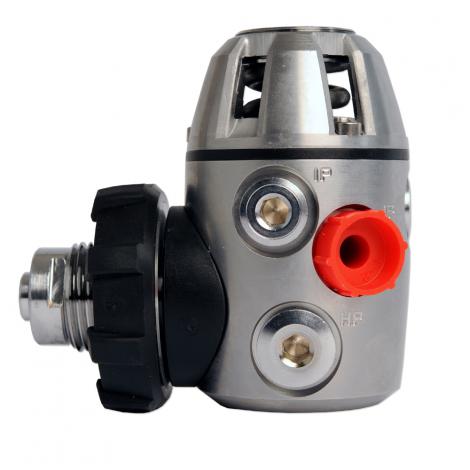

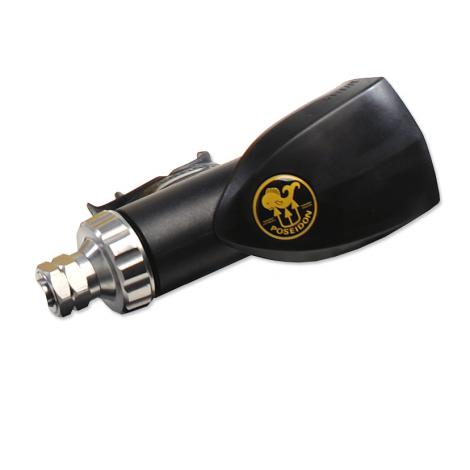

0110-000_xxl 0120-000_xxl regulator_xstream_pic39_m xstream_duration_1st_stage_g5_8 xstream_duration_g5_8 xstream_octupus

Share

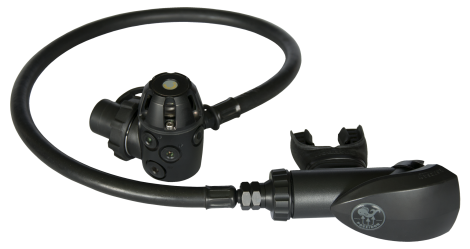

Xstream Black Regulator

xstream_black-image02

Poseidon Xstream Black Regulator

Hardcore, Redefined

The Poseidon Xstream Black, based on the Poseidon Xstream, is the preferred performance regulator of the US Navy, US Coastguard, and German Bundeswehr, brings divers the ultimate in performance in all water conditions and at all depths (certified to 200m/656 ft). It is the regulator of choice for divers who really mean business.

With the Xstream Black you get:

  • Titanium black surface coating for insane durability
    • Ultimate performance in all conditions
    • Legendary Poseidon reliability
    • Respect



Share

Jetstream Regulator

0100-006_xxl

The Jetstream Mk3 is an updated version of the classic Jetstream

We have now connected a Jetstream second stage with an Xstream first stage, thus creating an even better version of this high performing regulator.

With its unique style, multiple colours and rugged reliability, the Jetstream is ideal for beginners and experienced divers alike.

Effortless breathing at any depth. The first stage incorporates a safety valve that allows you to continue to breathe normally from the second stage, even in the unlikely event of abnormally high pressure air in the first stage.

Colours: Blue, Red, Black, Grey, Yellow

Material: Durable PVC housing with metal mechanism and rubber parts

TECHNICAL FEATURES:

> Equipped with two dive modes
> Robust, durable
> Approved to EN250 cold water standard
> Unique Thermo Dynamic Anti-freeze system (TDA)
> Reliable high performance
> 2nd stage could be used either from left or right
> Upstream 2nd stage valve



0110-000_xxl_0 0120-005_xxl 12031_jetstream_collectioncol regulator_jetstream_pic37_m

Share

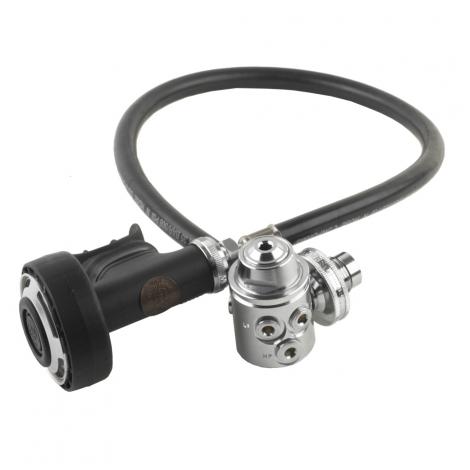

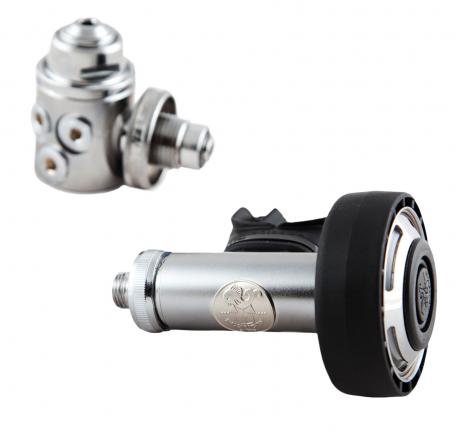

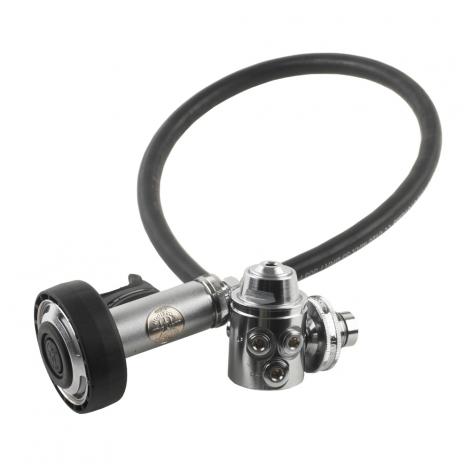

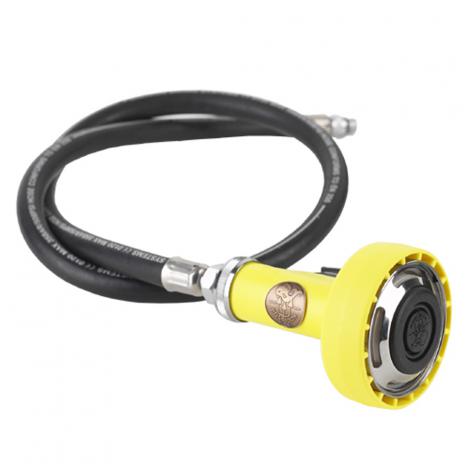

Cyklon

regulator_cyklon_pic41_m 2981_xxl

The Cyklon has been the first choice of many since 1958
Poseidon’s Cyklon set a new world standard for diving regulators. When it was introduced in 1958, the Cyklon was the first regulator in the world with a single hose and the demand valve situated at the mouth.
Thanks to its well¬tested construction and design, the Cyklon is still the first choice of the German Navy.
Material: Cyklon 5000 2nd stage in plastic. Cyklon Metal – The same design as the Cyklon 5000, but with the 2nd stage in metal.
TECHNICAL FEATURES:
> Use either way up
>Approved to EN250 cold water standard
> High performance, robust workhorse
regulator
> Approved to cold water standard
> Unique durable 2nd stage
> 2nd stage could be used either
from left or right
> Downstream 2nd stage valve
Models:
Cyklon 5000
Cyklon Metal
Cyklon Metal Octopus
Cyklon Octopus
All versions of the Cyklon can be offered as Single and Double Kits

3950_xxl 3950_m_xxl 3720_xxl

Share

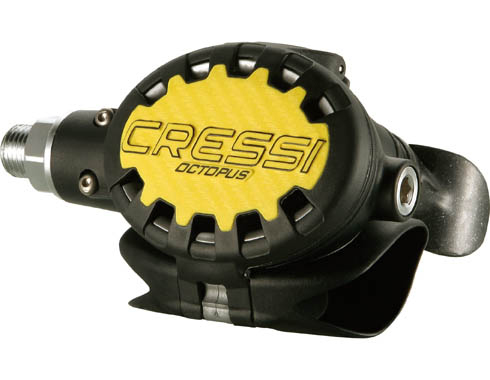

Octopus Ellipse

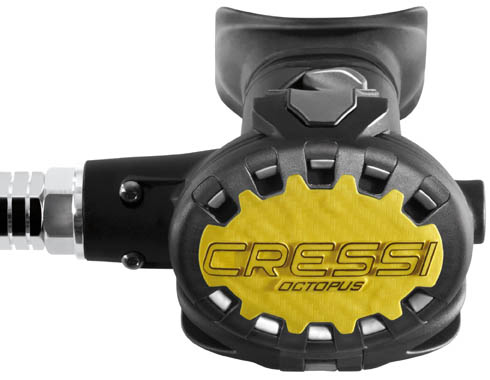

S_0HX817000_01

Octopus Ellipse uses the same casing as the Ellipse model made from special hi-tech polymers, the only difference being the yellow front cover.

The hose is also yellow and is longer (100 cm against the standard 76 cm).

All the parts of Ellipse, most of which are patented, can be found on this regulator: the fold-out opening of the casing, the special folding diaphragm, the computer designed lever, the tilting movement of the piston, the seal between regulator valve and casing, the possibility of extracting the entire valve system from the body of the 2nd stage.

A flow of pilot air is channelled to the mouthpiece by injection, enhancing the performance. The upper part of the body has a flow deviator that acts on the Venturi effect, with dive/pre-dive function.

The performance is extremely high, although the calibration is regulated so that the inhalation effort is slightly greater than on the Ellipse, to prevent any self-regulating possibility when it is used as a spare regulator.

Octopus Ellipse suits all the Cressi first stages perfectly and all the first stages with an intermediate pressure between 9 and 10 bar.



S_0HX817000_50

Share

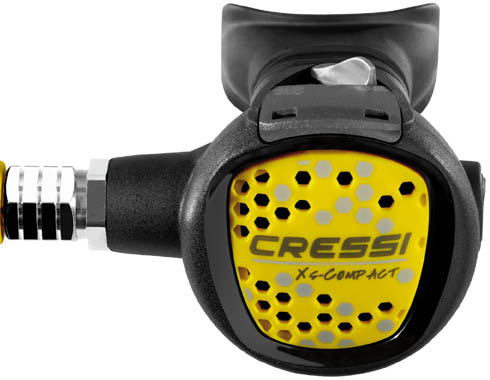

Octopus Compact

S_0HX789000_01

Octopus XS Compact uses the same casing as the XS Compact  model made from special hi-tech polymers, the only difference being the yellow front cover.
All the parts of XS Compact , most of which are patented, can be found on this regulator.
The performance is extremely high, although the calibration is regulated so that the inhalation effort is slightly greater than on the XS Compact , to prevent any self-regulating possibility when it is used as a spare regulator.
Octopus XS Compact suits all the Cressi first stages perfectly and all the first stages with an intermediate pressure between 9 and 10 bar.

S_0HX789000_50

Share

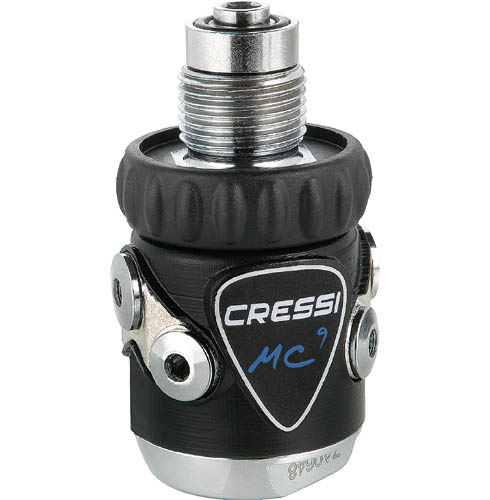

MC9

S_0HX820500_52

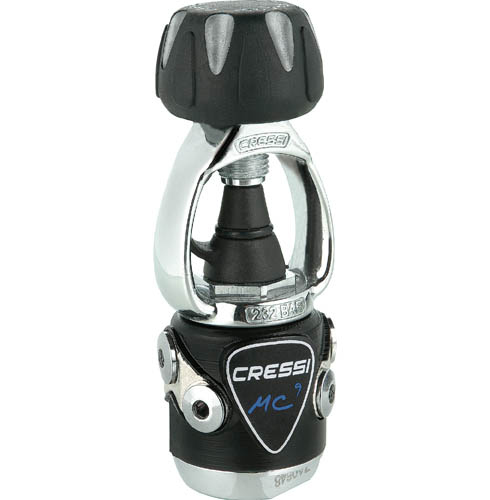

MC9 diaphragm 1st stage – Technical Features



  • Working pressure (INT connection): 0-232 bar
  • Working pressure (DIN connection): 0-300 bar
  • Calibration pressure: 10 bar
  • Calibration adjustment range: +/- 0.5 bar
  • Air supply:  4500 l/min   (*)
  • High pressure seats (HP)    2
  • Low pressure seats (LP)    4
  • Weight with INT connection: 590 g
  • Wight with DIN connection: 450 g



(*)values measured at LP seat outlet with second stage connected and 150 bar pressure in the cylinders.



S_0HX820500_53

Share

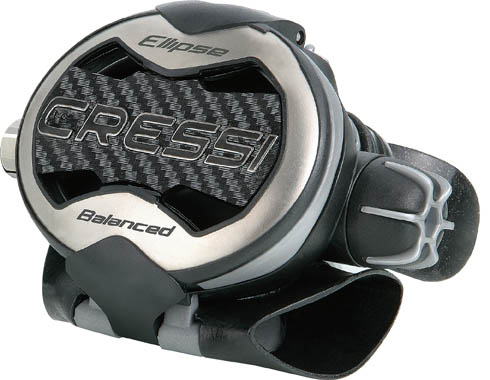

Ellipse Balanced

S_0HX820500_01

2nd stage Ellipse Balanced

Many of the exclusive technical characteristics of Ellipse, covered by 4 international patents, have been transferred to this new second stage.

Ellipse Balanced has a slightly larger casing which is made from a sound absorbing material, and a new diaphragm that further improves the already very low inhalation effort of Ellipse.

The weight is very low (the lightest in the category).

The pneumatic balancing system of the piston allows for constant performance at any depth and with any air pressure in the tanks.

An easy grip knob allows for the instant adjustment of the inhalation effort, even when wearing gloves, thus regulating it as first regulator or as spare regulator depending on the preferences of the user and the required use.

The regulation system is protected by a double seal and is fully protected from contact with water, thus maintaining smooth rotation even over time.

A small lever, located in the upper part of the casing, acts as a flow deviator and allows the Venturi effect to be adjusted. When placed in position (-) it functions as pre-dive, for getting into the water and the first stages of the dive, whilst when moved to (+) it allows the regulator to develop its maximum performance.

An internal heat exchanger optimises the performance of the regulator even in cold waters.

The special study of air flows inside the casing has meant that absolutely natural, smooth and very silent breathing has been obtained.

The standard release baffle can be directly replaced by the user for a larger model which pushes the bubbles further way from the diver’s face.

The possibility of quickly removing the entire mechanical part from the casing significantly aids maintenance operations.



Technical Characteristics of the 2nd stage Ellipse Balanced with 1st stage MC9

  •  Average inhalation effort 3 mbar
  •  Average exhalation effort 8 mbar
  •  Average breathing labour 0.75  J/l
  •  Quantity of air supplied 2500 l/m (*)
  •  Weight without hose 170 g

(*) Values measured in compliance with standard UNI EN 250.

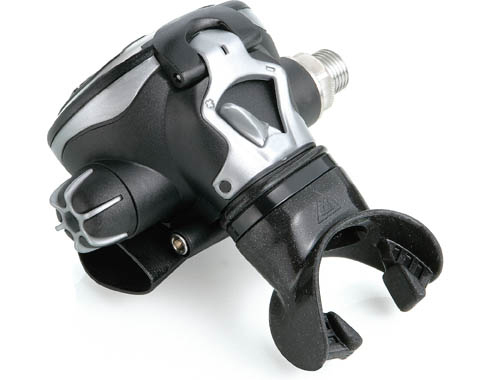

S_0HX820500_50 S_0HX820500_51

Share

Compact

S_0HX783051_51

Second Stage

-Compact shape reduces weight and in-water drag.

-Nearly all of the face acts as a purge button for easy access and fast clearing.

-Dive/pre-dive Venturi switch boosts air delivery at depth and minimizes freeflow at the surface.

-Streamlined exhaust tee directs bubbles to the side for a clear field of view.

-Made from lightweight techno-polymers, reducing jaw fatigue while diving and reducing overall weight for travel.

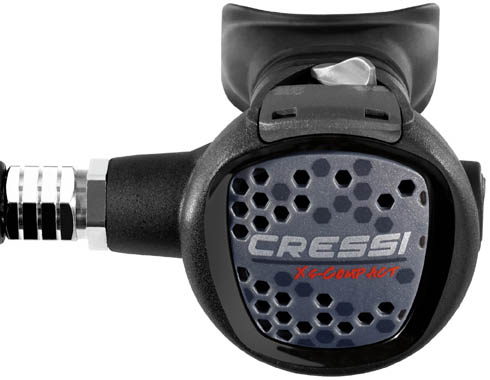

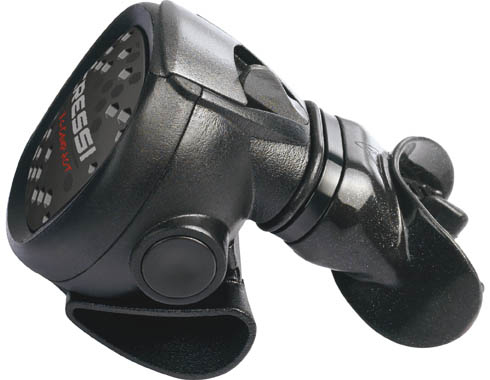

S_0HX783051_50 S_0HX783051_01
