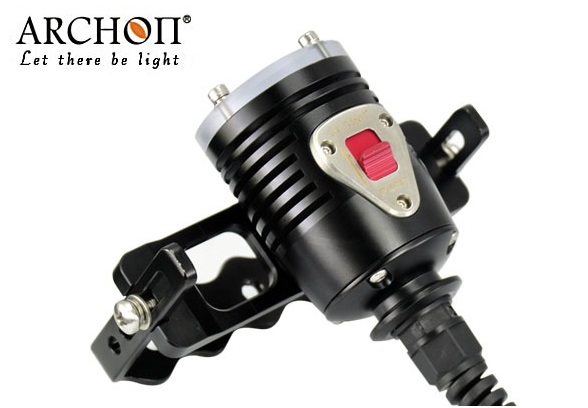

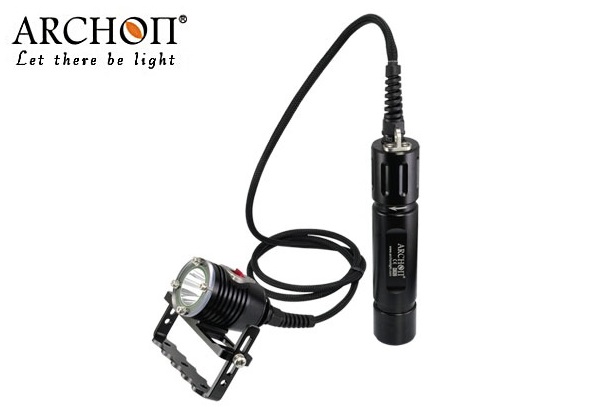

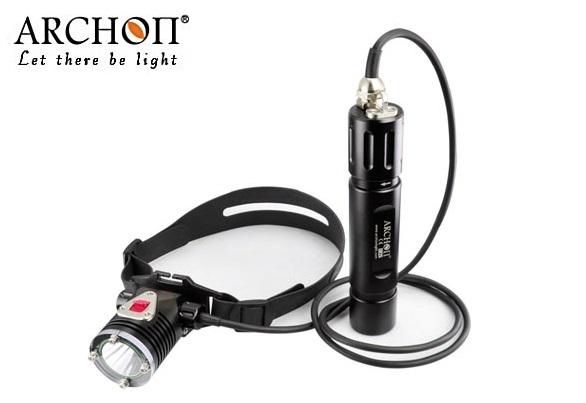

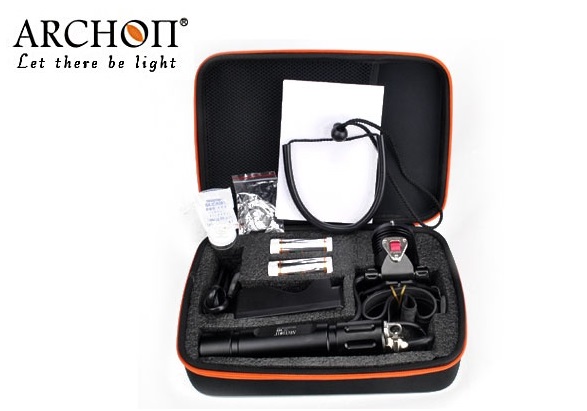

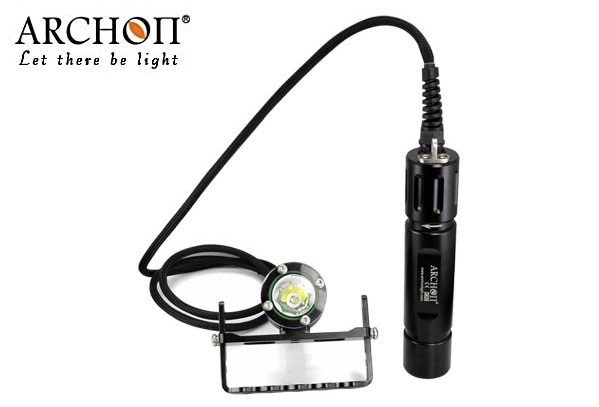

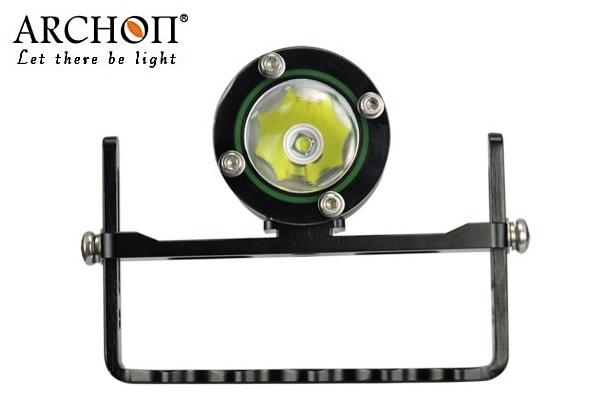

Archon (WH32)

1

WH32

Specification:

◆ Model: WH32 Canister Diving Light/Diving Headlight

◆ Bulb: CREE XM-L U3 LED

◆ Brightness: 1100 Lumens

◆ Color temperature: 6500k.

◆ Three output levels. High> Low>Strobe

◆ Runtime: High: 3H, Low:6H, Strobe:4H

◆ Lamp Life: 100000 Hours

◆ Reflector: Glossy Aluminum reflector, high temperature industrial processes.

◆ Lens: Explosion proof 6mm Polycarbonate Board.

◆ Back pressure sealed system

◆ Angle of light beam 8° hot spot, 110° periphery

◆ Body material: durable aircraft-grade aluminum.

◆ Surface treatment: Premium Type III hard-anodized anti-abrasive finish.

◆ Color: Black

◆ Battery: 26650 Li- ion battery *2 in canister

◆ With battery over-discharging protection, polarity reversing ◆protection

◆ Operation voltage: 6V to 10V.

◆ Waterproof: 100 meters underwater

◆ Dimensions: light head: 70mm (length) *46mm (dia. of head);

canister: 166mm(length)*36mm (dia. of body)



2 3 4 5

Share

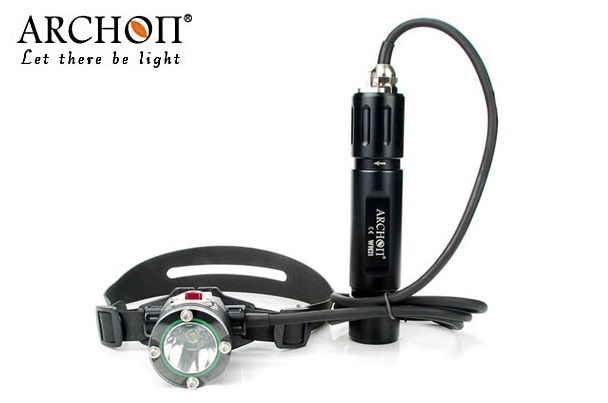

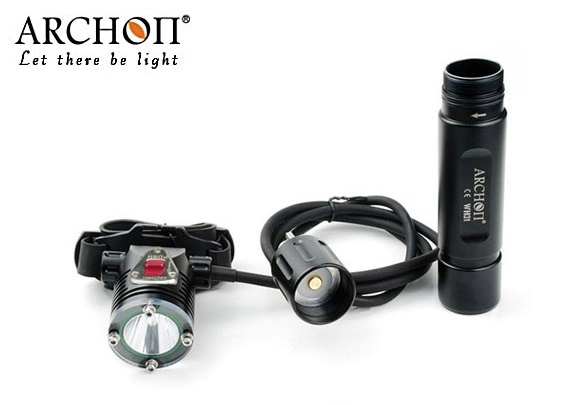

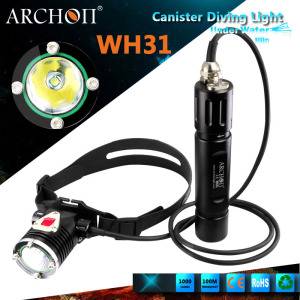

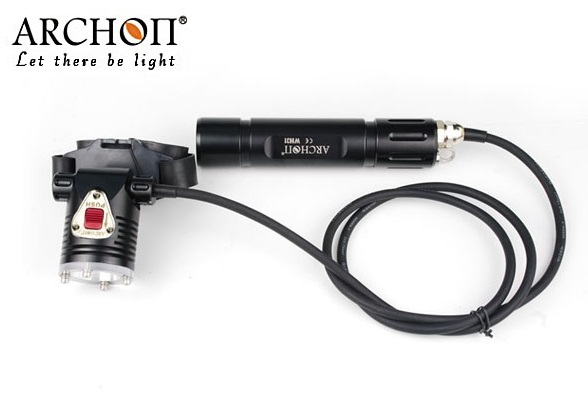

Archon (WH31)

1

WH31

Specification:

◆Model: DH25 Canister Diving Light/Diving Headlight

◆Bulb: CREE XM-L U2 LED (Max 1000 Lumens)

◆Color temperature: 6500k.

◆Three output levels. High> Low>Strobe

◆Runtime: High: 210 min, Low: 360 min, Strobe: 300 min

◆Light head: 80° vertical adjustable

◆Reflector: Glossy Aluminum reflector

◆Lens: 6mm Polycarbonate Board.

◆Body material: Durable aircraft-grade aluminum.

◆Angle of light beam 10° hot spot, 110° periphery

◆Surface treatment: Premium Type III hard-anodizing.

◆Color: Black

◆Battery: 26650 Li- ion battery *2 in canister

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 6V to 10V.

◆Waterproof: 100 meters underwater

◆Dimensions: light head: 70mm (length) *46mm (dia. of head); canister: 166(length)*36mm (dia. of body)

◆Weight:513 grams (without batteries); 695 grams (with batteries)

◆Underwater Weight: 360 grams (with batteries)

◆Impact resistance: 1.5M.



2 3 4 5Archon (WH31)

Share

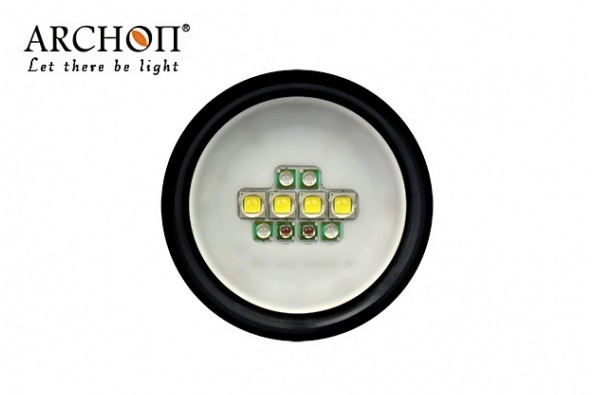

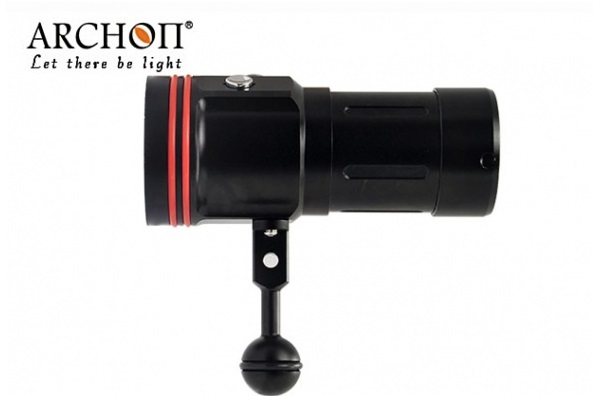

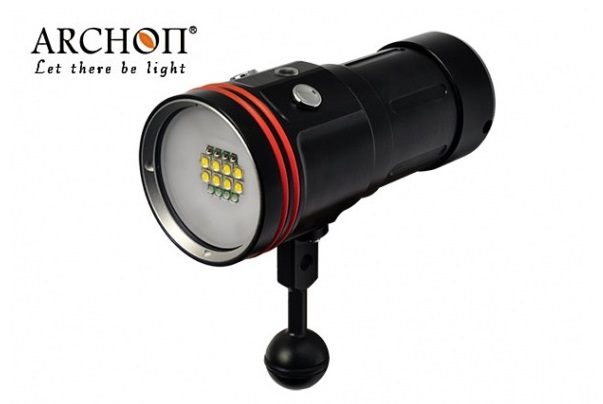

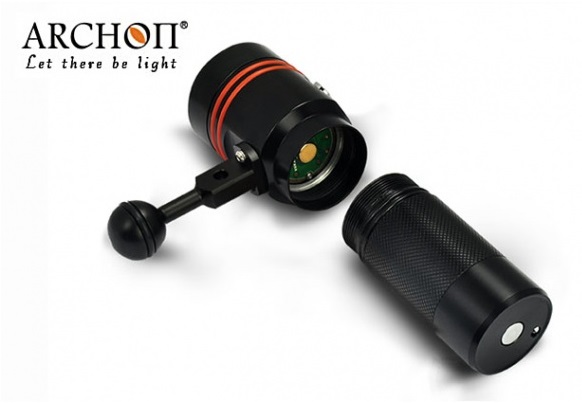

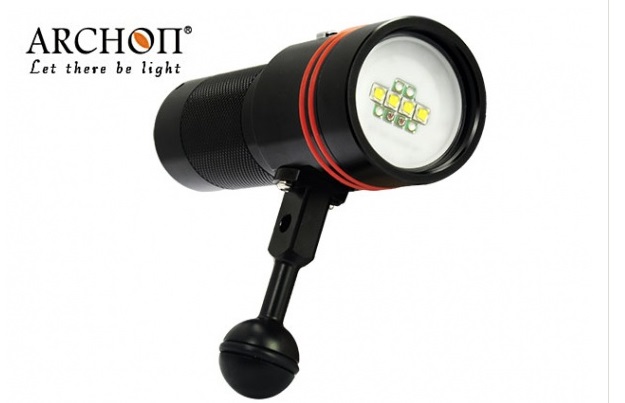

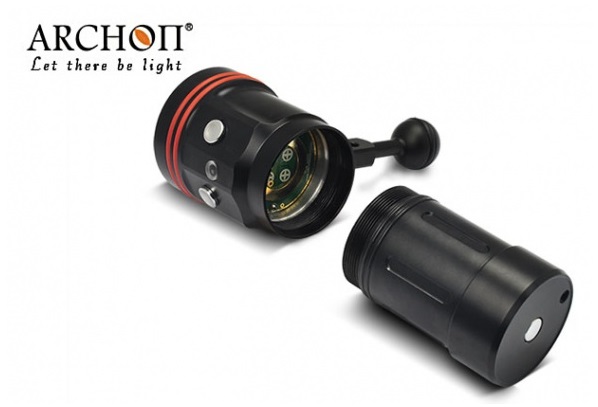

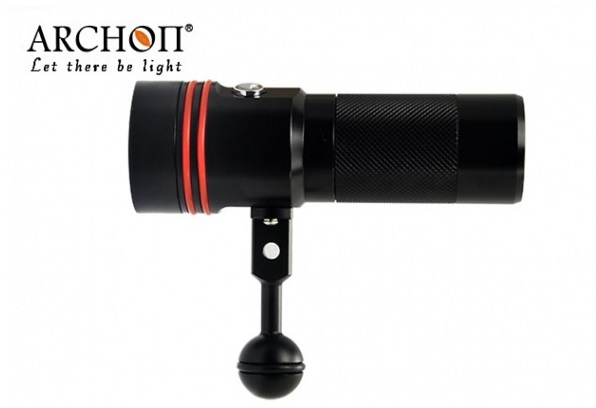

Archon (W42V)

1

W42VR

PRODUCT SPECIFICATIONS:

◆ Model: W42VR multifunction underwater photographing Light

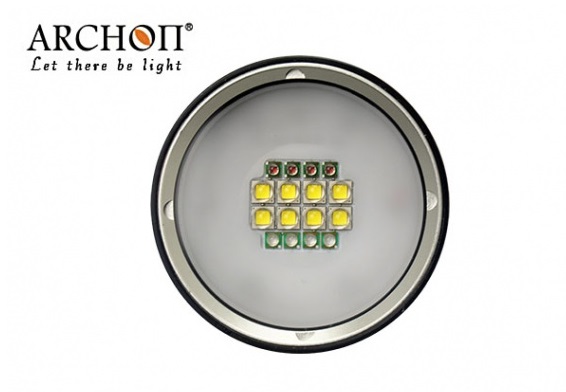

◆ Bulb: White CREE XM-L2 U2 LED *8 (max 5200 Lumens);

Red CREE XP-E N3 LED*4 wavelength 620 nm (max 400 Lumens);

Purple LED *2 wavelength 410nm (max 6W);

UV LED*2 wavelength 365nm (max 6W);

◆ Switch 1: Red> Purple> UV> off

Switch 2: White high> White medium >White low> off

The two switches can be operated separately or simultaneously.

◆ Runtime: White High Mode: 1.5H; White Medium Mode: 3.0H; White

Low Mode: 4.0H                                                          Red Light: 4.0H; Purple Light: 5.0H; UV light: 5.0H

◆ Color temperature: 5000K (white light)

◆ Reflector: No hotspot design, no reflector;

◆ Lens: 4mm Polycarbonate Board;

◆ Body material: Durable aircraft-grade aluminum;

◆ Angle of light beam: 120°

◆ Surface treatment: Premium Type III hard-anodizing.

◆ Color: Black

◆ Battery: 18650 rechargeable Li- ion battery *4;

◆ Battery Indicator: 100%-50%: Green; 50%-30%: Yellow; 30%-10%:

Red; Below 10%: Red Flashing; Below 5%: switch off;

◆ With battery over-discharging protection, polarity reversing

protection

◆ with gas release valve

◆ Operation voltage: 2.8V to 4.2V;

◆ Waterproof: 100 meters underwater

◆ Dimensions: 140.9mm (length)* 62.6mm (dia. of head);

◆ Weight: 490 grams (without battery); 682.4 grams (with battery)

◆ Underwater Weight: 330 grams (with battery)

◆ Impact resistance: 1.5M.



2 3 4 5

Share

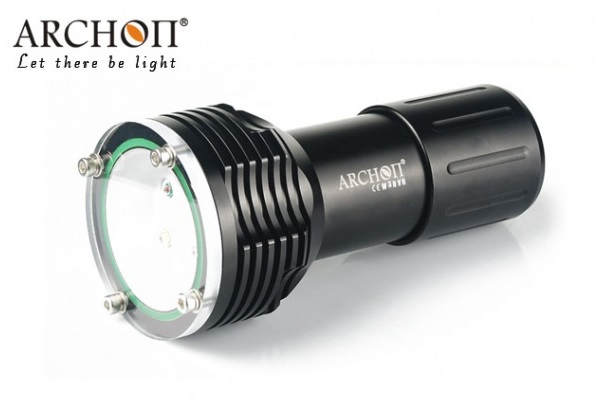

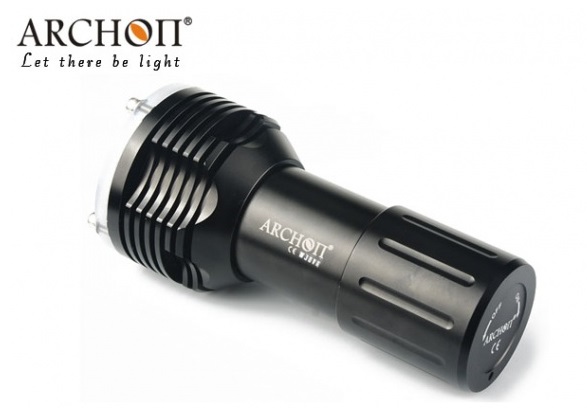

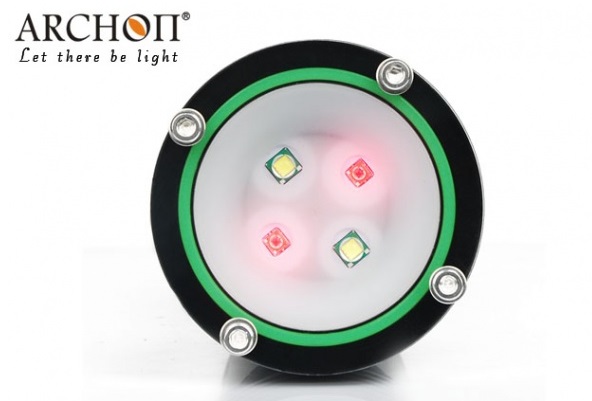

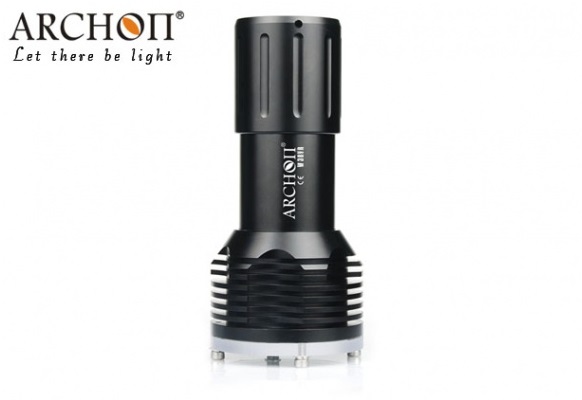

Archon (W38VR)

1

W38VR

◆Model: W38VR multifunction underwater photographing Light

◆Bulb: White CREE XM-L U2 LED *2 (max 1400 Lumens); Red CREE XP-E N3 LED*2 (max 200 Lumens)

◆Color temperature: White LED: 5000k; Red LED: 610-630 nm wavelength

◆Three output levels. White high>White low>Red

◆Runtime: High: 90-120min, Low: 240 min, Red:: 210 min

◆Reflector: no hotspot design, no reflector

◆Lens: 6mm Polycarbonate Board.

◆Body material: Durable aircraft-grade aluminum.

◆Angle of light beam: 120°

◆Surface treatment: Premium Type III hard-anodizing.

◆Color: Black

◆Battery: 32650 Li- ion battery *1.

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 2.8V to 4.5V.

◆Waterproof: 100 meters underwater

◆Dimensions: 133mm (length)*28mm (dia. of body)*60mm (dia. of head).

◆Impact resistance: 1.5M.

◆Weight: 290 grams (without battery); 430 grams (with battery)

◆Underwater Weight: 320 grams (with battery)

Operation Instruction: Successive switching ON-OFF within two seconds to cycle through high, low, red



2 3 4 5

Share

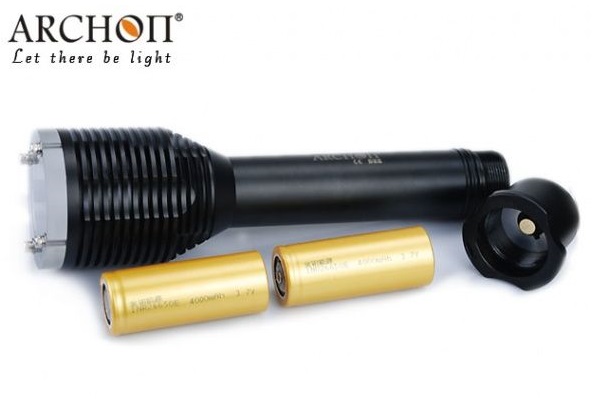

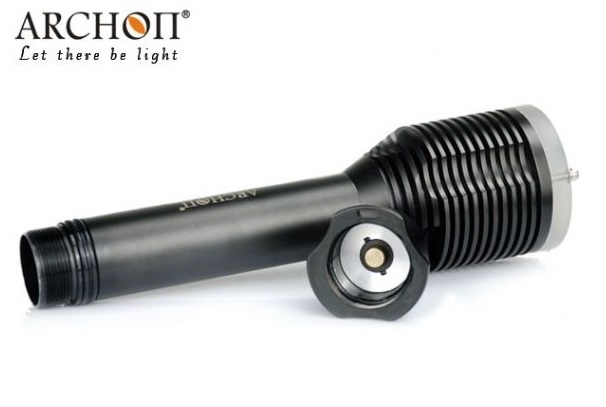

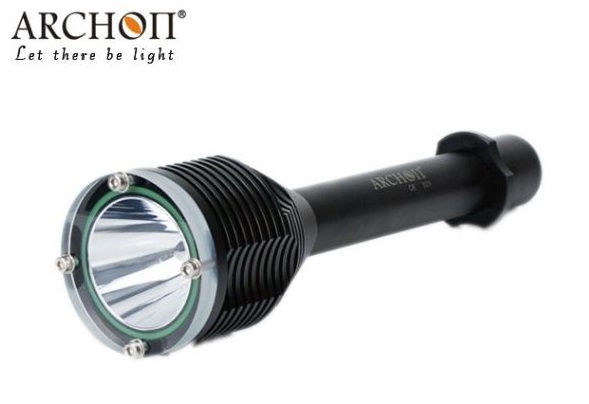

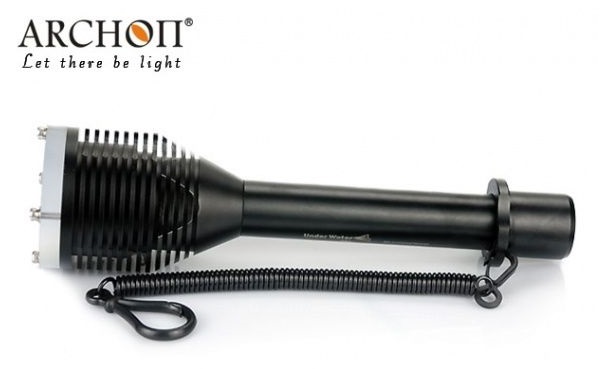

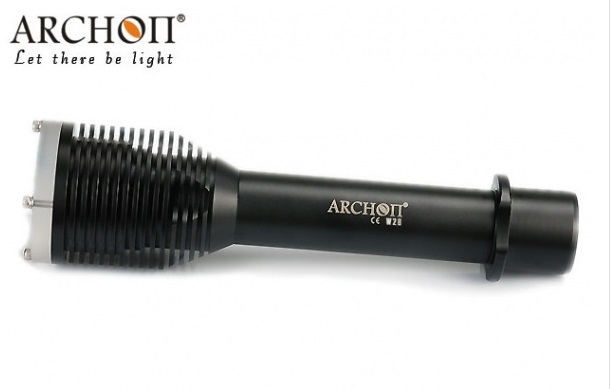

Archon (W28)

1

W28

◆Model: W28 diving light (haiii)

◆Bulb: cree xm-l t6 led (max 1000 lumens)

◆Color temperature: 6500k.

◆Runtime: high: 4 hrs low: 7 hrs, strobe: 6hrs.

◆Three brightness levels, high> low>strobe

◆Reflector: glossy aluminum reflector

◆Lens: 8mm polycarbonate board.

◆Body material: durable aircraft-grade aluminum.

◆Angle of light beam 5.5° hot spot, 110° periphery

◆Surface treatment: premium type iii hard-anodizing.

◆Color: black

◆Battery: 26650 li-ion battery *2.

◆Battery over-discharging protection, polarity reversing protection

◆Operation voltage: 6v to 10v.

◆Waterproof: 100 meters underwater

◆Size: 228 (length)*32 (dia. Of end) *60mm (dia. Of head)

◆Weight: 365 grams (w/o batteries).

◆Operation temperature: -25℃-60℃

◆Impact resistance: 1.5 m.

◆Operation instruction: successive switching on-off within two seconds to cycle through high, low, strobe



2 3 4 5

Share

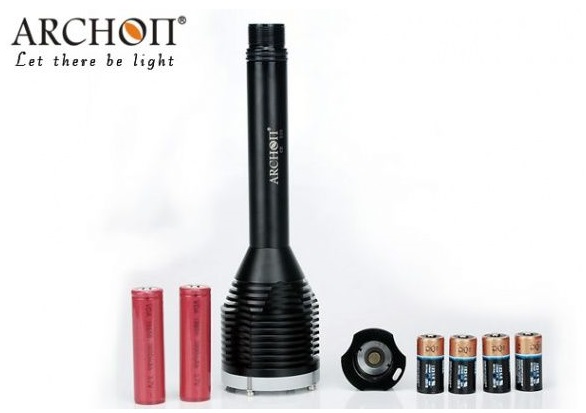

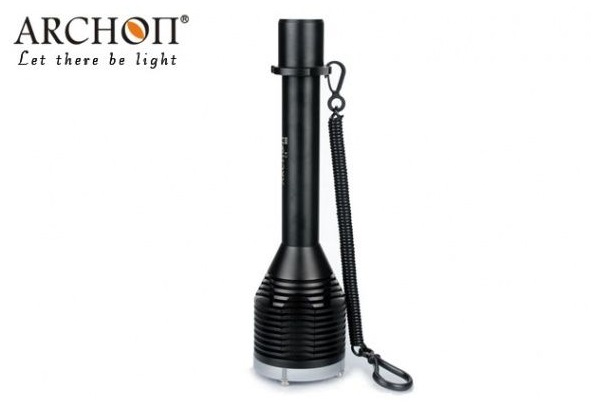

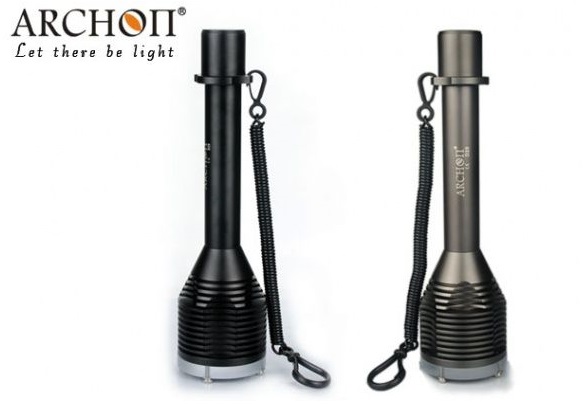

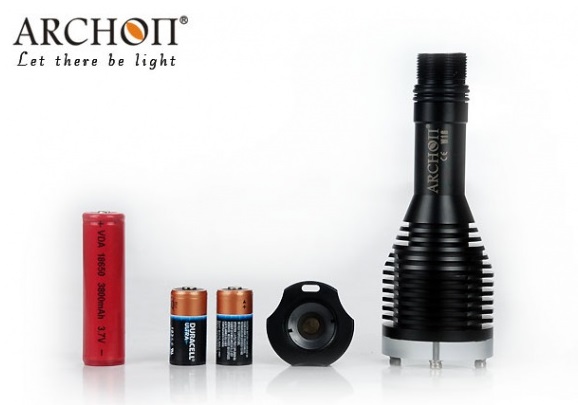

Archon (W26)

1

W26

◆Model:W26 diving light (haiii)

◆Led: cree xm-l t6 (max 1000 lumens)

◆Color temperature: 6500k

◆Runtime: high: 110 min, low: 420 min, strobe: 260min

◆Three output levels, high>low>strobe.

◆Reflector: glossy aluminum reflector

◆Lens: 8mm polycarbonate board.

◆Body material: durable aircraft-grade aluminum.

◆Angle of light beam 5.5° hot spot, 110° periphery

◆Surface treatment: premium type iii hard-anodizing.

◆Color: black/grey

◆Battery: cr123 *4 or 18650 li- ion battery *2.

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 6v to 10v.

◆Waterproof: 100 meters underwater

◆Size: 229(length)*24.5(dia. Of end)*60mm (dia. Of head)

◆Weight: 365 grams (w/o batteries)

◆Operation temperature: -25℃-60℃

◆Impact resistance: 1.5 m.

◆Operation instruction: successive switching on-off within two seconds to cycle through high, low, strobe



2 3 4 5

Share

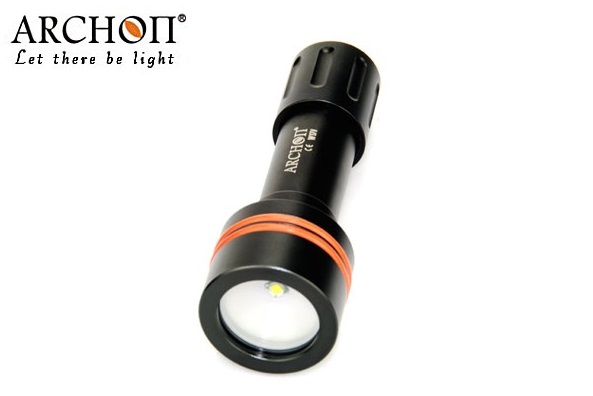

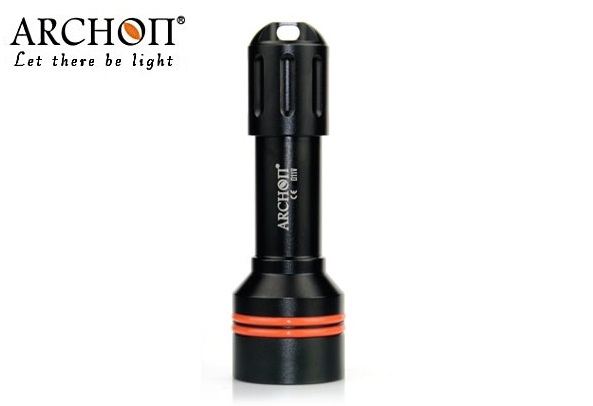

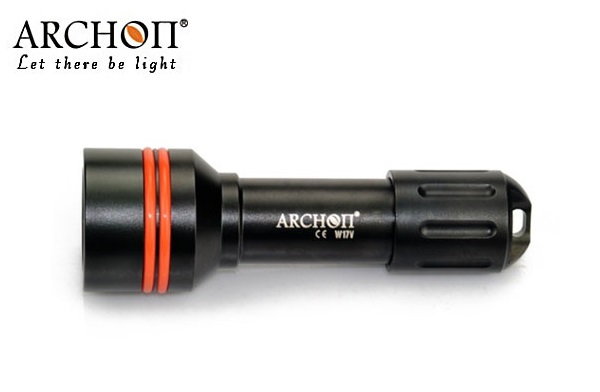

Archon (W17V)

1

W17V

PRODUCT SPECIFICATIONS

◆Model: W17V Underwater Photographing Light

◆Bulb: Cree XM-L (Max 860 lumens)

◆Color temperature: 5000k.

◆Three output levels. High> Low>Strobe

◆Runtime: High: 70min, Low: 320 min, Strobe: 150 min

◆Reflector: without reflector, for underwater photographing only

◆Lens: 4mm Polycarbonate Board.

◆Body material: Durable aircraft-grade aluminum.

◆Angle of light beam: 110°

◆Surface treatment: Premium Type III hard-anodizing.

◆Color: Black

◆Battery: CR123*2 or 18650 Li- ion battery *1.

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 3V to 6V.

◆Waterproof: 100 meters underwater

◆Dimensions: 125(length)*24(dia. of body)*40mm (dia. of head).

◆Weight: 140grams (without battery); 190 grams (with battery)

◆Underwater Weight: 95 grams (with battery)

◆Impact resistance: 1.5M.



2 3 4 5

Share

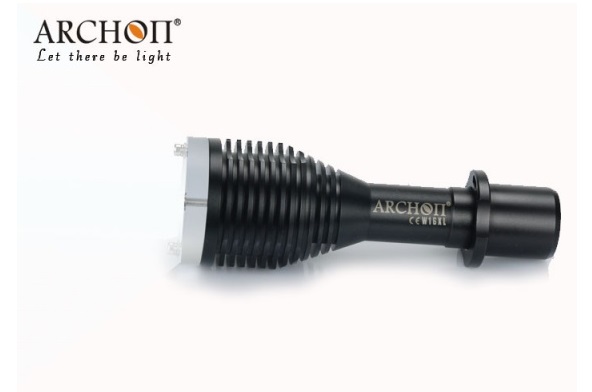

Archon (W16XL)

1

W16XL

◆Model: W16XL Diving Light (HAIII)

◆Bulb: Cree XM-L U2 (Max 860 lumens)

◆Color temperature: 6500k.

◆Three output levels. High> Low>Strobe

◆Runtime: High: 70min, Low: 320 min, Strobe: 150 min

◆Reflector: Glossy Aluminum reflector

◆Lens: 8mm Polycarbonate Board.

◆Body material: Durable aircraft-grade aluminum.

◆Angle of light beam 5° hot spot, 110° periphery

◆Surface treatment: Premium Type III hard-anodizing.

◆Color: Black

◆Battery: 18650 Li- ion battery *1.

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 2.8V to 4.5V.

◆Waterproof: 100 meters underwater

◆Dimensions: 148(length)*23(dia. of end)*50mm (dia. of head).

◆Weight: 215 grams (w/o batteries)

◆ Operation Temperature: -25℃-60℃

◆Impact resistance: 1.5M.

Operation Instruction: Successive switching ON-OFF within two seconds to cycle through high, low, strobe



2 3 4

Share

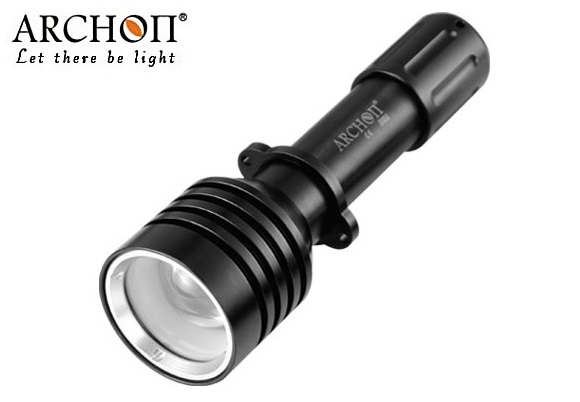

Archon (W16U)

1

W16U
◆Model: W16U zoomable Diving Light/underwater photographing light

◆Bulb: CREE XM-L U2 LED (Max 680 Lumens)

◆Color temperature: 6500k.

◆Three output levels. High> Low>Strobe

◆Runtime: High: 70 min, Low: 320 min, Strobe: 150 min

◆Reflector: Glossy Aluminum reflector

◆Lens: Aspheric lens.

◆Body material: Durable aircraft-grade aluminum.

◆Angle of light beam: 6°- 68° zoomable

◆Surface treatment: Premium Type III hard-anodizing.

◆Color: Black

◆Battery: 18650 Li- ion battery *1.

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 2.8V to 4.5V.

◆Waterproof: 60 meters underwater

◆Dimensions: 129-144mm (length)*23(dia. of body)*45mm (dia. of head).

◆Impact resistance: 1.5M.

◆Weight: 190 grams (without battery); 240 grams (with battery)

◆Underwater Weight: 200 grams (with battery)

Operation Instruction: Successive switching ON-OFF within two seconds to cycle through high, low, strobe



2 4 5

Share

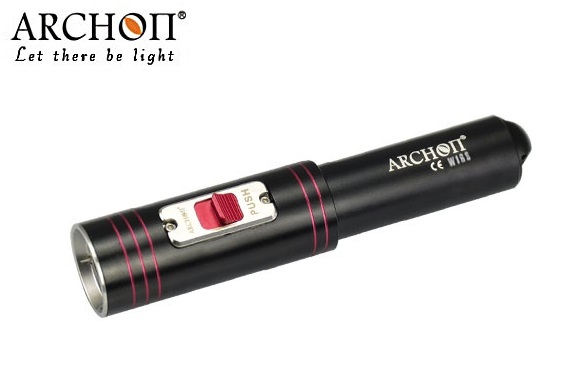

Archon (W16S)

1

W16S

PRODUCT SPECIFICATIONS

◆Model: W16S Diving Light

◆Bulb: Cree XM-L U2 (Max 860 lumens)

◆Color temperature: 6500k.

◆Output Function: High> Off

◆Runtime: 70 min.

◆Reflector: Glossy Aluminum reflector

◆Body material: Durable aircraft-grade aluminum.

◆Angle of light beam 8°

◆Surface treatment: Premium Type III hard-anodizing.

◆Color: Black

◆Battery: 18650 Li- ion battery *1.

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 3.0V to 4.5V.

◆Low voltage alarm: flash 3 times when the voltage is below 3V and flash 3 times again in 5 second, then change to 10% brightness till switch off when the voltage is below 2.8V.

◆Waterproof: 100 meters underwater

◆Dimensions: 145(length)*24(dia. of end)*29mm (dia. of head).

◆Weight: 115grams (without battery); 165 grams (with battery)

◆Underwater Weight: 135 grams (with battery)

◆Impact resistance: 1.5M.




3 4 5

Share

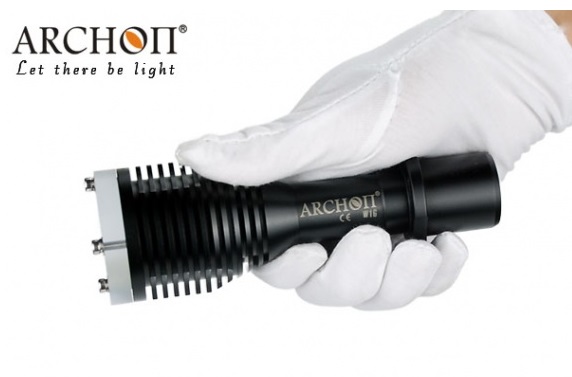

Archon (W16)

1

W16
◆Model: W16 diving light (haiii)

◆Bulb: cree xp-g r5 led (max 340 lumens)

◆Color temperature: 6500k.

◆Three output levels. High> low>strobe

◆Runtime: high: 110 min, low: 600 min, strobe: 260 min

◆Reflector: glossy aluminum reflector

◆Lens: 8mm polycarbonate board.

◆Body material: durable aircraft-grade aluminum.

◆Angle of light beam 5° hot spot, 110° periphery

◆Surface treatment: premium type iii hard-anodizing.

◆Color: black/grey

◆Battery: cr123 *2 or 18650 li- ion battery *1.

◆With battery over-discharging protection, polarity reversing protection

◆Operation voltage: 3v to 6v.

◆Waterproof: 100 meters underwater

◆Dimensions: 148(length)*23(dia. Of end)*50mm (dia. Of head).

◆Weight: 210 grams (w/o batteries)

◆Operation temperature: -25℃-60℃

◆Impact resistance: 1.5m.

◆Operation instruction: successive switching on-off within two seconds to cycle through high, low, strobe



2 3 4

Share

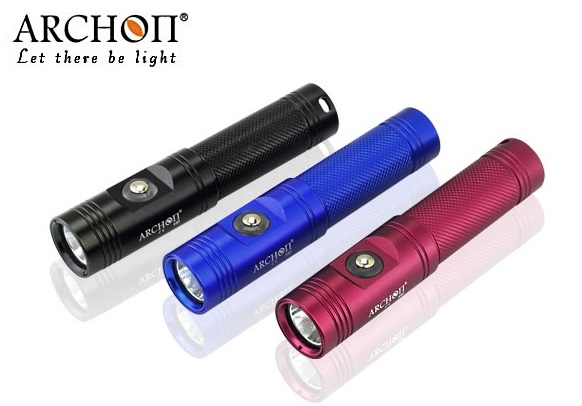

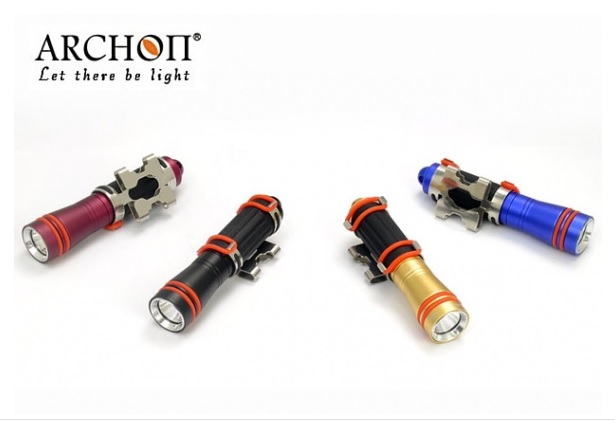

Archon (V10)

1

V10

PRODUCT SPECIFICATIONS

◆ Model No.: V10 Diving Light

◆ LED: CREE XM-L U2 (Max 860 lumens)

◆ Color Temperature: 6500k

◆ Runtime: High: 90 min, Low: 150min, SOS: 120 min

◆ Three Brightness Levels: High(100%)>Low(30%)>SOS>Off

◆ Body Material: Durable Aircraft-grade Aluminum

◆ Angle of Light Beam: 16°

◆ Surface Treatment: Premium Hard-anodizing

◆ Color: Black/ Red/ Blue

◆ Battery: 18650 Battery*1

◆ With battery over-discharging protection, polarity reversing   protection

◆ Operation Voltage: 3V to 4.2V

◆ Waterproof: 60 Meters Underwater

◆ Dimensions: 132mm (Length) * 28mm (Dia. of Head)

◆ Impact Resistance: 1.5 M

◆ Weight: 105 Grams (Without Batteries); 138 Grams (With Batteries)

◆ Underwater Weight: 65 Grams (With Batteries)



2

Share
Share
